Delta Smart Effector

Filafarm

Current price
49.90 €
incl. 19% Tax.,
plus shipping costs
41.93 €
net, plus Tax.,
plus shipping costs
Delivery within one week
*
* The delivery time refers to a delivery within Germany. The delivery times for other countries and the calculation of the delivery time can be found on our page „Shippingcharges and paymenttherms“.

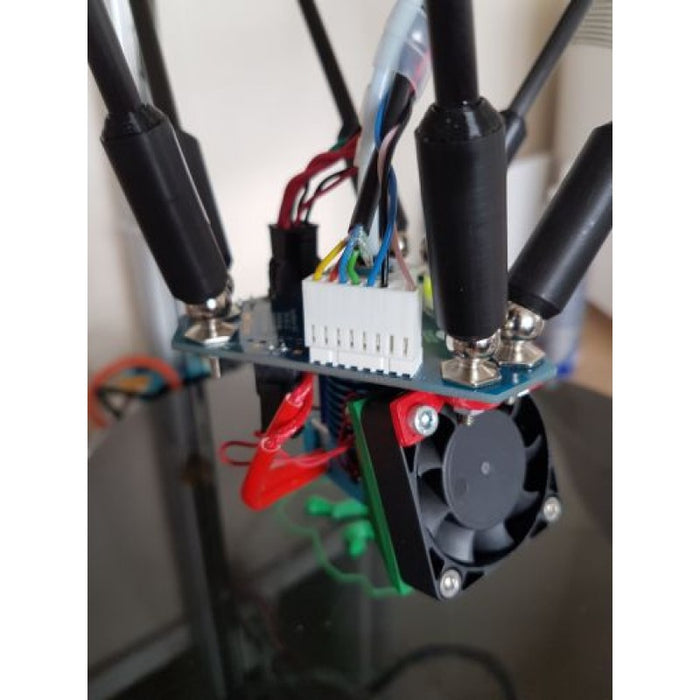

The Smart Effector for delta printers allows the hotend to be used as a Z probe giving fantastic accuracy across the whole delta build area by elimiating the effect of tilt. It leverages the advantage of precision PCB manufacturing to ensure equal hole spacing between the effector and the carriages on the towers, further improving accuracy.

  • Supplied with a custom machined e3d v6 heatsink (produced by e3d on our behalf).
  • Supplied with 3 PCB carriage adapters with 20mm mounting hole spacing compatible with common linear rails and wheel carriages.
  • Compatible with Haydn Huntley’s Magball delta arms. We have 360mm arms as an option or various lengths are availble from Haydn directly or other suppliers. We list spare mag balls if you want to have multiple smart effectors for a quick swap.
  • The smart effector simplifies wiring of hotend components with plug connectors from thermistor and fans along with a screw terminal for the heater cartridge. Molex and microfit connections are then used for wiring looms back to the control electronics. Crimp pins and housings are supplied for all connections
  • Optionally a Genuine e3d V6 kit with PT100 or thermistor can be added, not including the heatsink as that is supplied as standard. (24V availabe by default)
  • On board LEDs for print illumination are compatible with either 12V or 24V power supplies with a jumper selecting the voltage.

More detail is available on the wiki.



Attention!
All necessary connectors are included. The installation of this equipment should only be attempted by a qualified individual. Local electrical codes should be followed (for Germany VDE-policies). Gross M&V (filafarm.de and filafarm.com) are not liable for damages to property or injuries to individuals due to improper wiring or installation of our equipment.
